Identity Management Architecture

Avatier Identity AnywhereTM Architecture with Docker Containers

Don’t bet your future on last century architecture.

Outdated architecture. It’s the root of the problems that plague identity management platforms. By leveraging the latest Docker container technology our solutions are cloud agnostic and unlike cloud-only solution providers, each customer receives their own independently secured identity platform.

The architecture for existing identity management platforms are limited in key ways:

Hard to Adopt

Requires complex hardware, software and infrastructure installations

Labor Intensive

Time consuming to upgrade and maintain. Must copy existing directory attributes, users, groups, etc. to the cloud

Bound by Platform

Stuck with vendor architecture on-prem or cloud dependency

Avatier is different

Avatier is built for the next century, not the last.

The Avatier Identity Anywhere architecture takes a unique and patented approach to identity management architecture. Built for the demands of highly distributed, complex, and modern identity management platforms, the Avatier architecture turns adoption, maintenance and platform flexibility into the ultimate business advantage.

Continuous Delivery

Save upgrade time and cost regardless of on-premise or in the cloud. Automatic delivery of the latest Identity Management features and security updates without downtime.

Portable Freedom

Future-proof your enterprise with Identity AnywhereTM. Hosted Identity Management in the cloud from Avatier or locally administered by your staff, on-premise or with any cloud provider.

Native Login

Eliminate dual-administration by authenticating using native directories without synchronization and redundant replication of users, passwords and groups in the cloud or on-premise.

Easy Recovery

Rollback ensures you can always get back to a previous version.

Hyper Scalability

Instantly adds memory and larger cpu's to your Identity Management solution upon demand on-premise or in the cloud. Automatically spin-up new Identity Management servers instances as users and API sessions increase.

Maximum Security

Operate confidently and pass audits knowing that your Identity Management solution and data are privately encrypted and secured to your own instance without any co-mingling. Reduce your surface of cybersecurity vulnerability by running on a single function minified operating system.

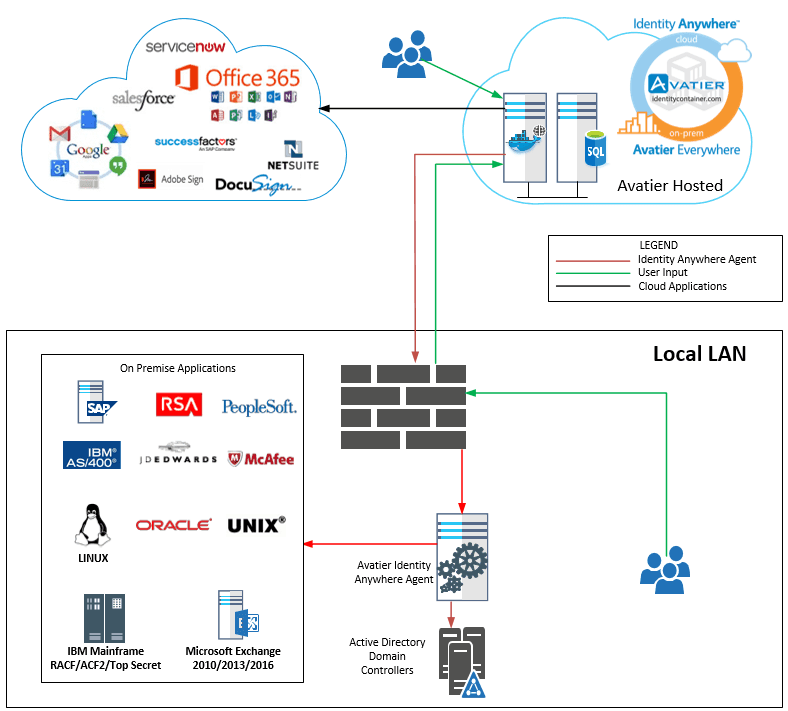

Identity Management Docker Container Hosted Architecture

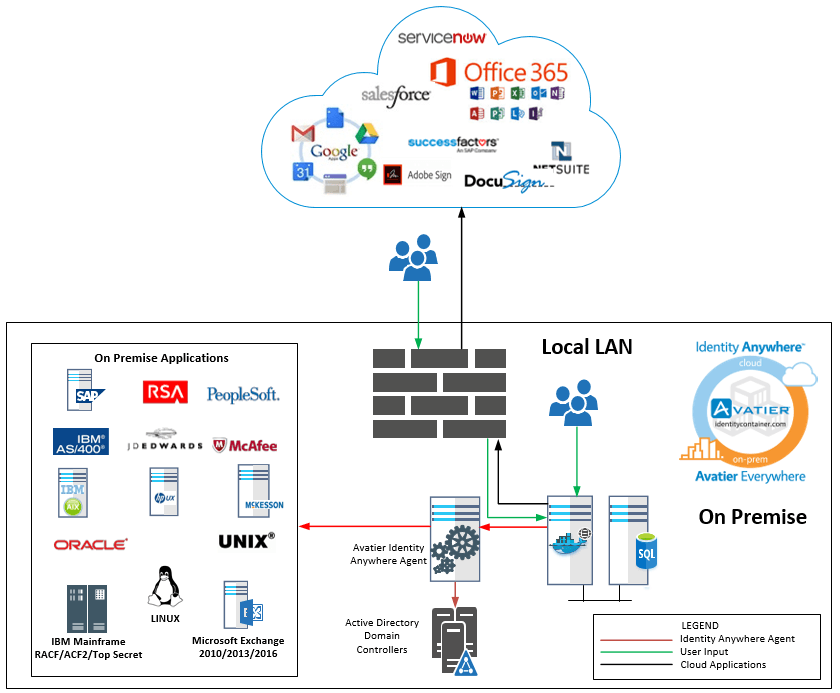

Identity Management Docker Container On-Premise Architecture

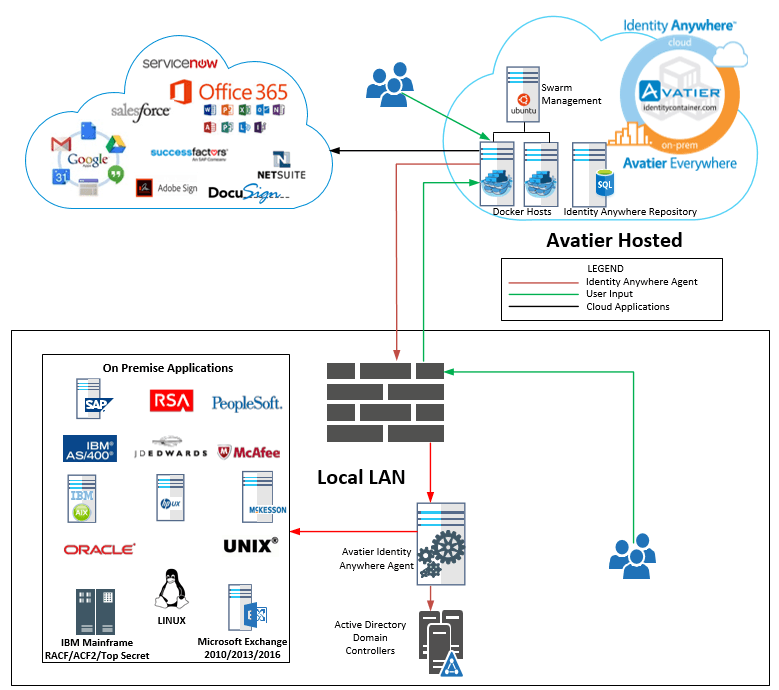

Identity Management Docker Swarm Hosted Architecture

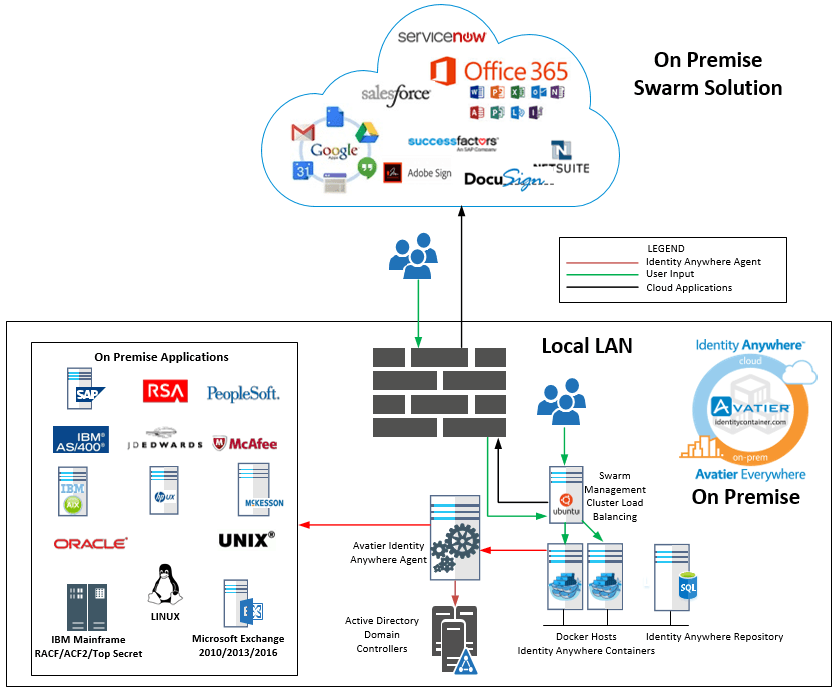

Identity Management Docker Swarm On-Premise Architecture

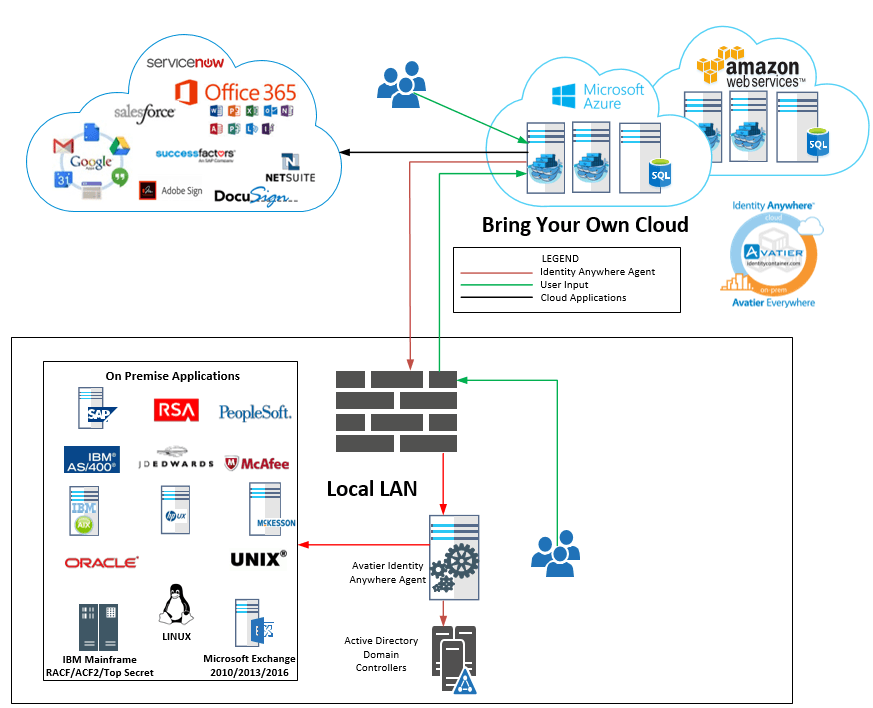

Identity Management Docker Swarm Bring Your Own Cloud Architecture

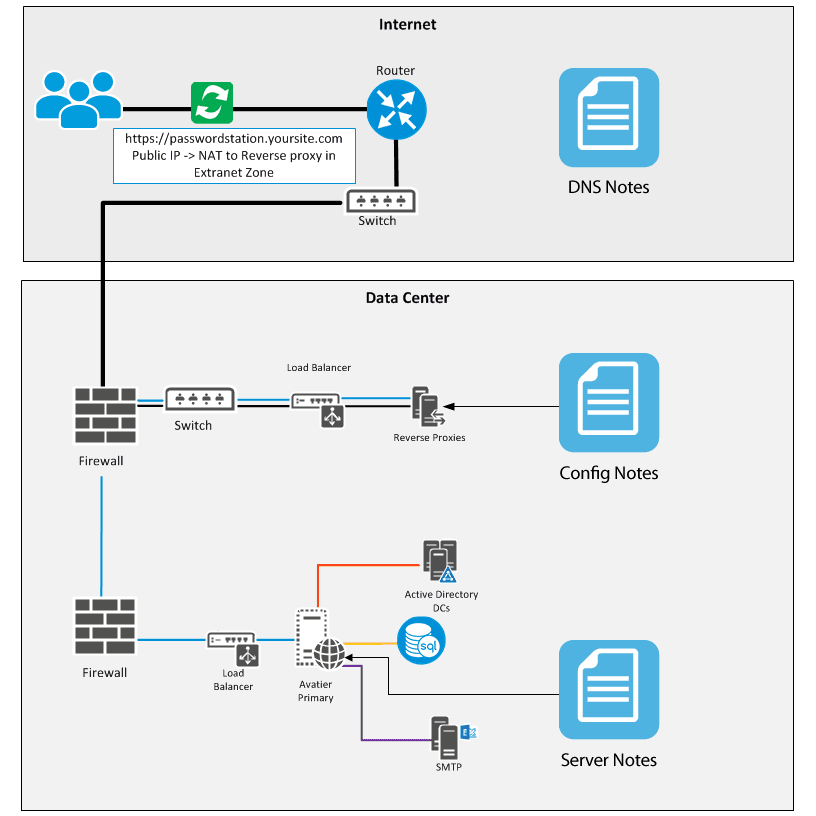

Reverse Proxy Server Architecture

Single Data Center High Availability (HA) Solution

Legend Reference	Purpose	Traffic Direction
	User requests for Password Management Service	Bi-directional: Inbound traffic routed to Reverse Proxies in Data Center 1 or Data Center 2 based on Global Traffic Management Service or system (F5, Akamai, etc.) Outbound traffic will only be necessary if using Cloud-based applications like Office 365, Salesforce, etc.
	Avatier Secondary Server in Data Center 2.	Inbound Only: Inbound traffic routed from reverse proxy in Data Center 2.
	Avatier Server communication with Active Directory	Outbound Only: Outbound to Active Directory domain controllers.
	Avatier Server communication SQL Cluster	Outbound Only: Outbound to all Active Directory domain controllers in the forest.
	Avatier Server SMTP communication	Outbound Only: Outbound SMTP communication.
	On-Premise Apps	Bi-directional depending on App.

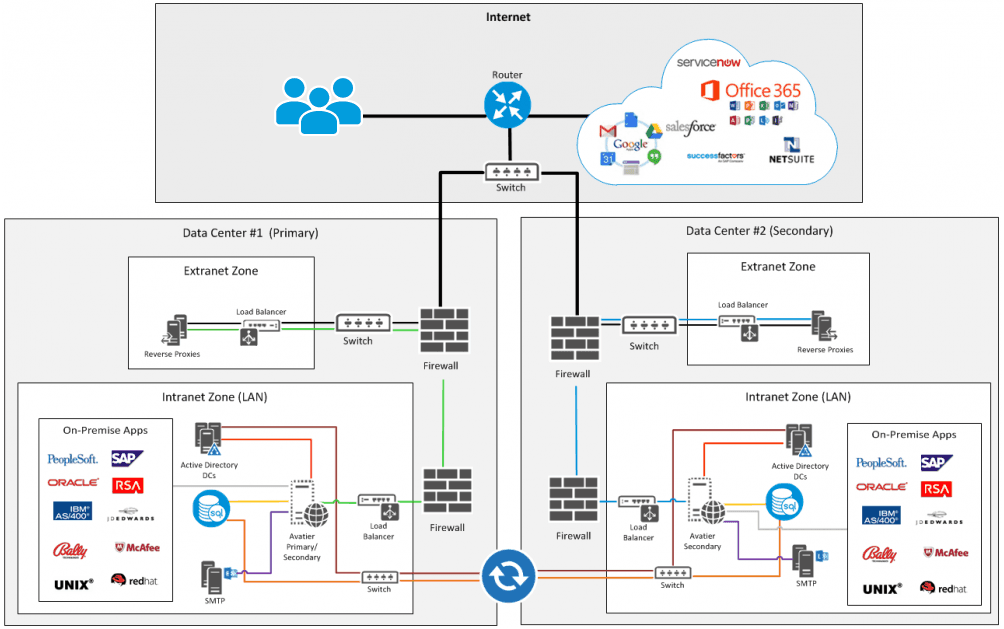

Dual Data Center High Availability (HA) Solution

Legend Reference	Purpose	Traffic Direction
	User requests for Avatier Identity Management Service	Bi-directional: Inbound traffic routed to Reverse Proxies in Data Center 1 or Data Center 2 based on Global Traffic Management Service or system (F5, Akamai, etc.) Outbound traffic will only be necessary if using Cloud-based applications like Office 365, Salesforce, etc.
	Avatier Primary and Secondary Servers in Data Center 1.	Inbound Only: Inbound traffic routed from reverse proxy in Data Center 1.
	Avatier Secondary Server in Data Center 2.	Inbound Only: Inbound traffic routed from reverse proxy in Data Center 2.
	Active Directory Replication	Bi-directional: Outbound to all Active Directory domain controllers in the forest. Inbound from all Active Directory domain controllers in the forest.
	SQL Server Replication	Bi-directional: Outbound replication traffic between SQL Clusters in Data Center 1 and 2. Inbound replication traffic between SQL Clusters in Data Center 1 and 2.
	Avatier Server communication with Active Directory	Outbound Only: Outbound to Active Directory domain controllers.
	Avatier Server communication SQL Cluster	Outbound Only: Outbound to all Active Directory domain controllers in the forest.
	Avatier Server SMTP communication	Outbound Only: Outbound SMTP communication.
	On-Premise Apps	Bi-directional depending on App.

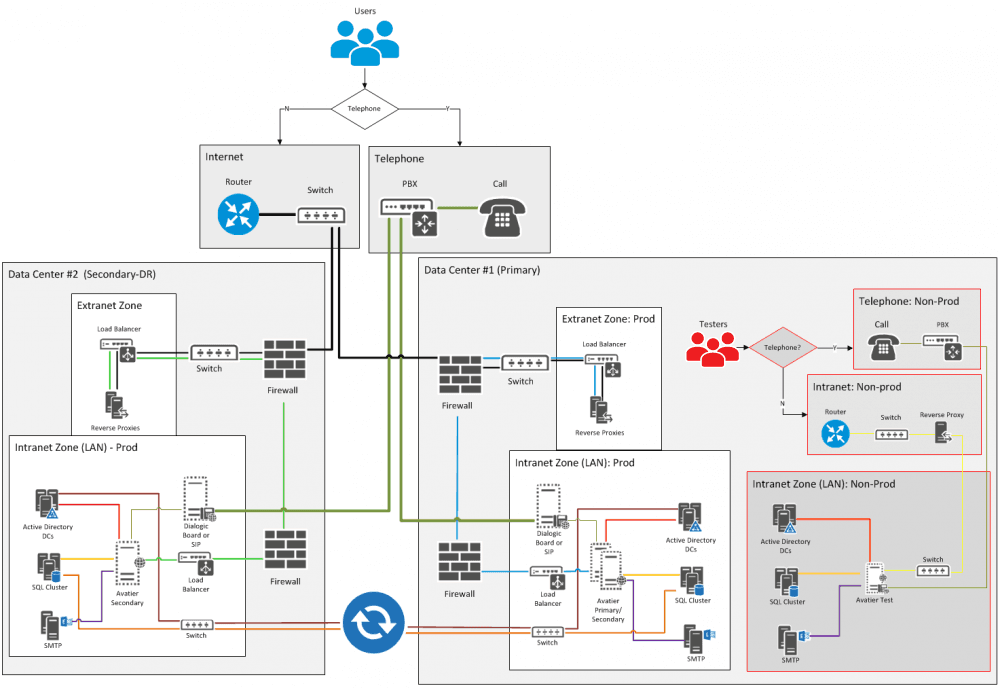

Phone Reset Password Management

Legend Reference	Purpose	Traffic Direction
	User requests for Avatier Identity Management Service	Bi-directional: Inbound traffic routed to Reverse Proxies in Data Center 1 or Data Center 2 based on Global Traffic Management Service or system (F5, Akamai, etc.) Outbound traffic will only be necessary if using Cloud-based applications like Office 365, Salesforce, etc.
	Avatier Primary and Secondary Servers in Data Center 1.	Inbound Only: Inbound traffic routed from reverse proxy in Data Center 1.
	Avatier Secondary Server in Data Center 2.	Inbound Only: Inbound traffic routed from reverse proxy in Data Center 2.
	Active Directory Replication	Inbound Only: Outbound to all Active Directory domain controllers in the forest. Inbound from all Active Directory domain controllers in the forest.
	SQL Server Replication	Bi-directional: Outbound replication traffic between SQL Clusters in Data Center 1 and 2. Inbound replication traffic between SQL Clusters in Data Center 1 and 2.
	Avatier Server communication with Active Directory	Bi-directional: Outbound to Active Directory domain controllers.
	Avatier Server communication SQL Cluster	Outbound Only: Outbound to all Active Directory domain controllers in the forest.
	Avatier Server SMTP communication	Outbound Only: Outbound SMTP communication
	On-Premise Apps	Bi-directional depending on App.
	PBX	Inbound Only: Inbound traffic routed to the IVR server
	Non-Prod Environment	Inbound Only: Inbound traffic routed through the Non-Prod environment.
